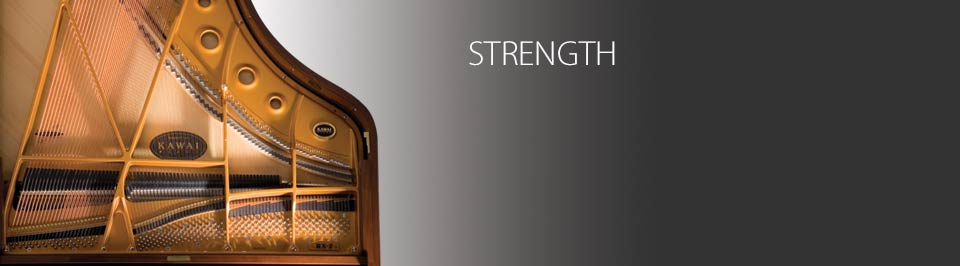

THE STRENGTH OF A WELL-CRAFTED INSTRUMENT MAKES THE PIANO ONE OF THE MOST IMPRESSIVE EXAMPLES OF TECHNOLOGY, ENGINEERING AND CRAFTSMANSHIP IN THE WORLD TODAY. GX BLAK SERIES GRAND PIANOS ARE DESIGNED WITH TREMENDOUS STRENGTH TO ENSURE STABILITY OF TONE AND TOUCH OVER TIME.

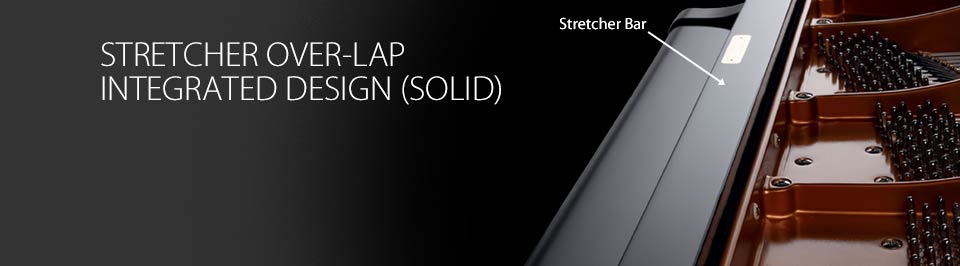

Stretcher Over-Lap Integrated Design (SOLID) creates an exceptionally rigid foundation to support string tension. With SOLID construction, the pinblock is fitted to the plate. The pinblock and over-lapping stretcher bar are then integrated into a single structure and solidly anchored to the rim. The stretcher bar itself boasts an extraordinary thickness that exemplifies the structural integrity of this sturdy framework designed to ensure stable tuning and powerful tone.

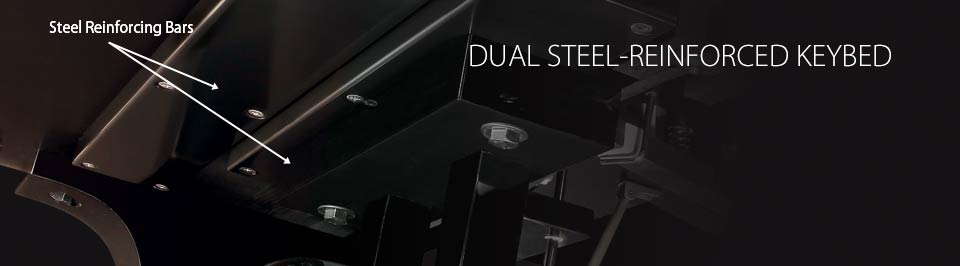

The keybed is made of extremely strong, laminated hardwoods. Kawai reinforces each keybed with an underside steel support beam to provide additional strength and maximum stability.

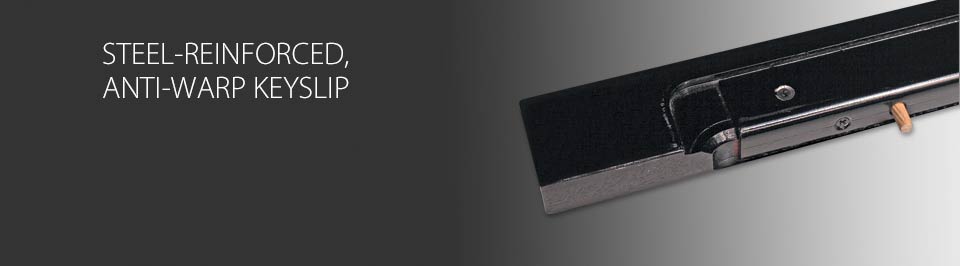

A piano's "keyslip" is the long, horizontal piece of wood that covers the front faces of the keys. Because it is made of wood, a keyslip can warp or bend with changes in humidity causing keys to stick. GX BLAK Series keyslips are reinforced with a steel inside liner that prevents warping or bending in any direction. Keys move freely as the keyslip remains straight and evenly distanced from the key faces throughout the life of the piano.

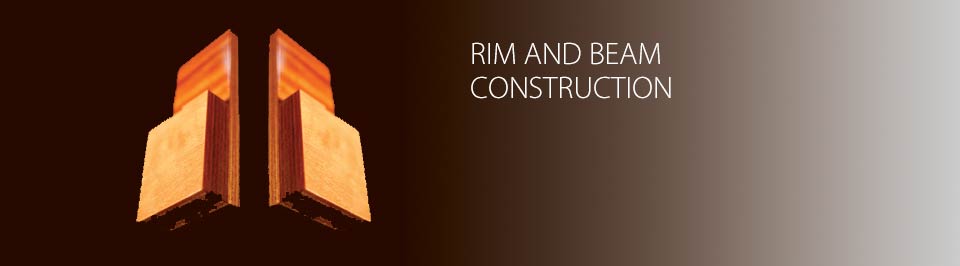

The GX BLAK Series rims are built using cross-binding and lamination techniques to form a structure that is, pound for pound, stronger than steel. The beams are made of select hardwood laminates, glued together under pressure, making them virtually isotropic (equally strong in all directions) and impervious to weather changes and warpage.

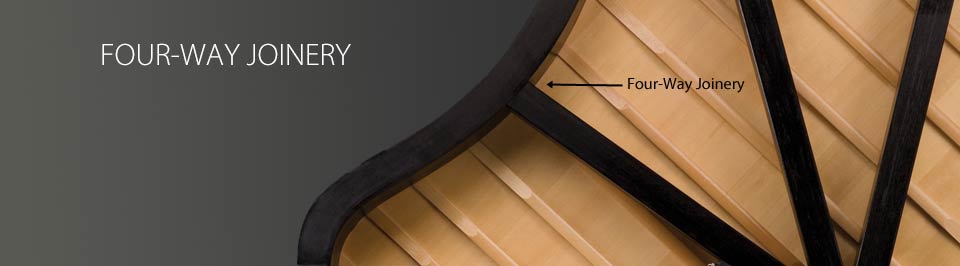

Beams are joined to the inner rim using four independent joinery techniques in a single process. Each beam is: (1) fitted with a hardwood dowel, (2) mortised into the inner rim for precise fit, (3) glued, and (4) secured with hardened screws for complete bonding through the entire thickness of the inner rim for a tremendously secure rim-to-beam connection.

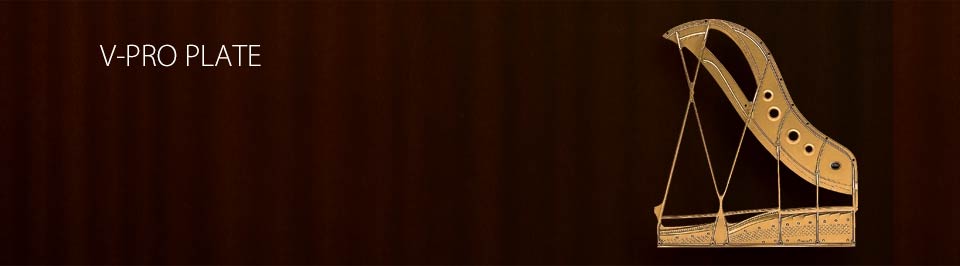

The V-Pro (Vacuum Mold Process) plate on the Kawai GX BLAK Series is the acoustically-neutral gray iron framework of the piano on which the strings are applied. As the “backbone” of the piano, the plate must be designed and built to ensure stability while enduring up to 18 tons of string tension. At the same time, it must be molded with sufficient precision to ensure exact string lengths. The V-Pro process produces a sturdy plate that is dimensionally accurate and consistent, with added strength provided by the “crossbone” design of the plate struts. With the application of a lustrous finish and the addition of highly-polished solid brass finials, the result is a plate that is strong, stable and beautiful.

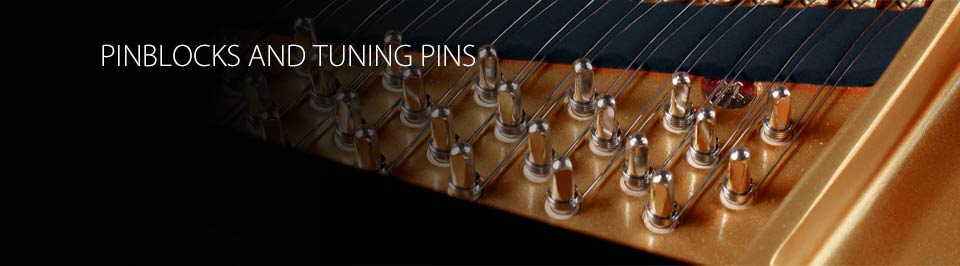

The Multi-Grip pinblock on all GX BLAK Series grand pianos is fully laminated with a minimum of eleven cross-banded layers of North American hard maple for maximum strength and balanced torque. Tuning pins are made from the finest carbon steel, machine-threaded for maximum continuous torque and nickel plated to enhance beauty and provide long-term protection.
